FMS 5.8G Analog FPV Set

FMS 5.8GHz Analog FPV System is a simple and user-friendly entry-level FPV setup.

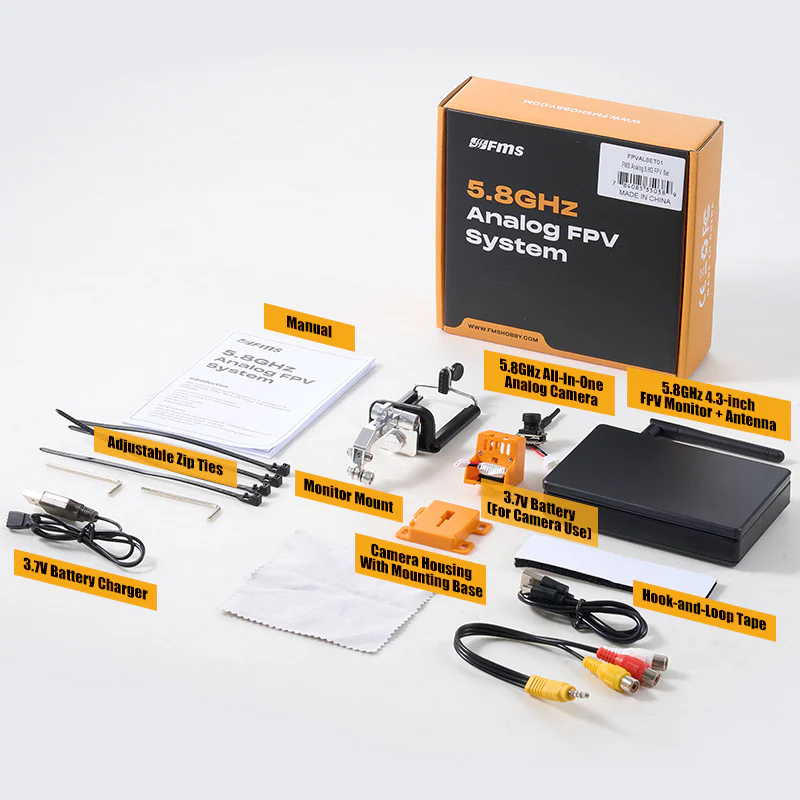

What's in the box:

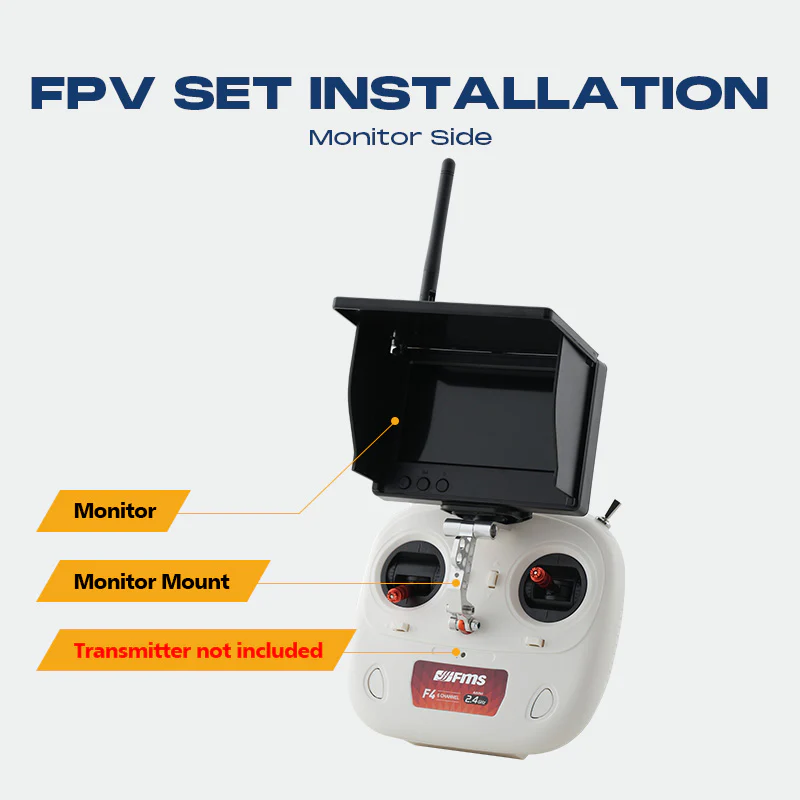

• 1 x 5.8GHz 4.3-inch FPV Monitor + Antenna
• 1 x 5.8GHz All-In-One Analog Camera
• 1 x Camera Housing With Mounting Base
• 1 x Monitor Mount
• 1 x 3.7V Battery (For Camera Use)
• 1 x 3.7V Battery Charger
• 1 x Hook-and-Loop Tape
• 1 x Adjustable Zip Ties
• 1 x Manual

How to Set Up:

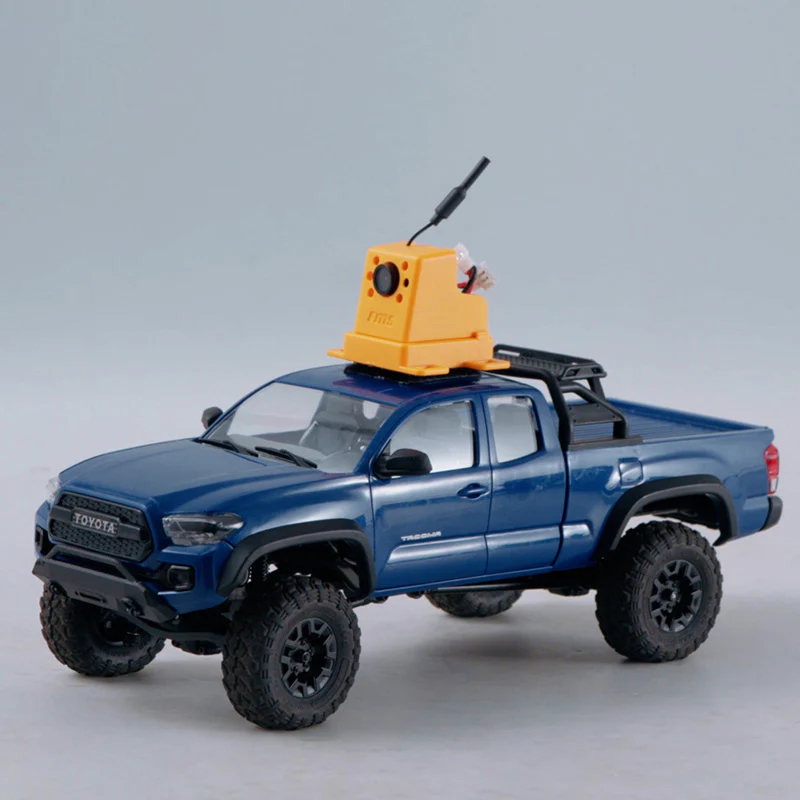

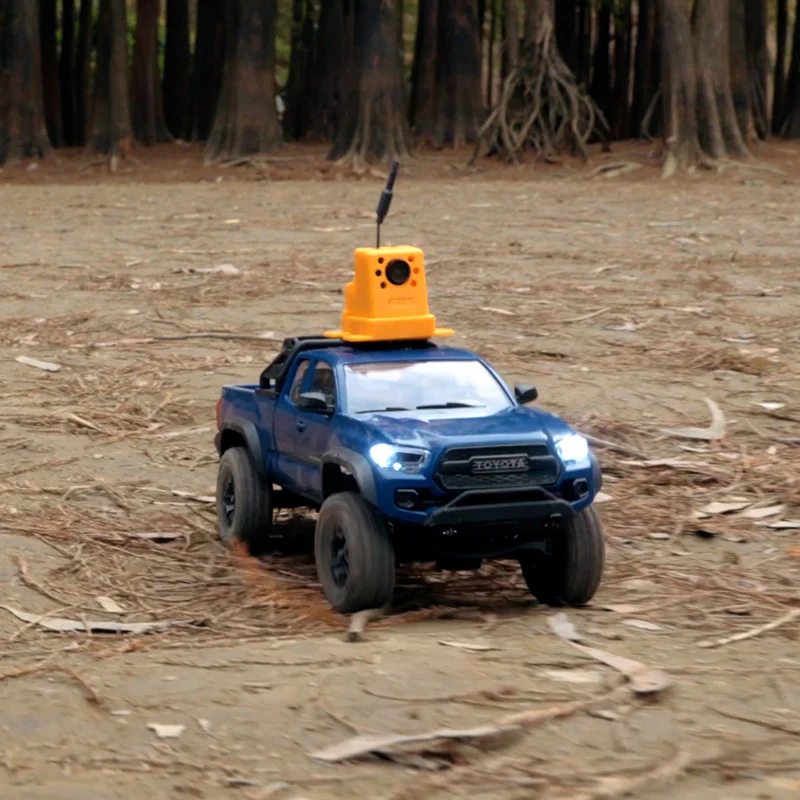

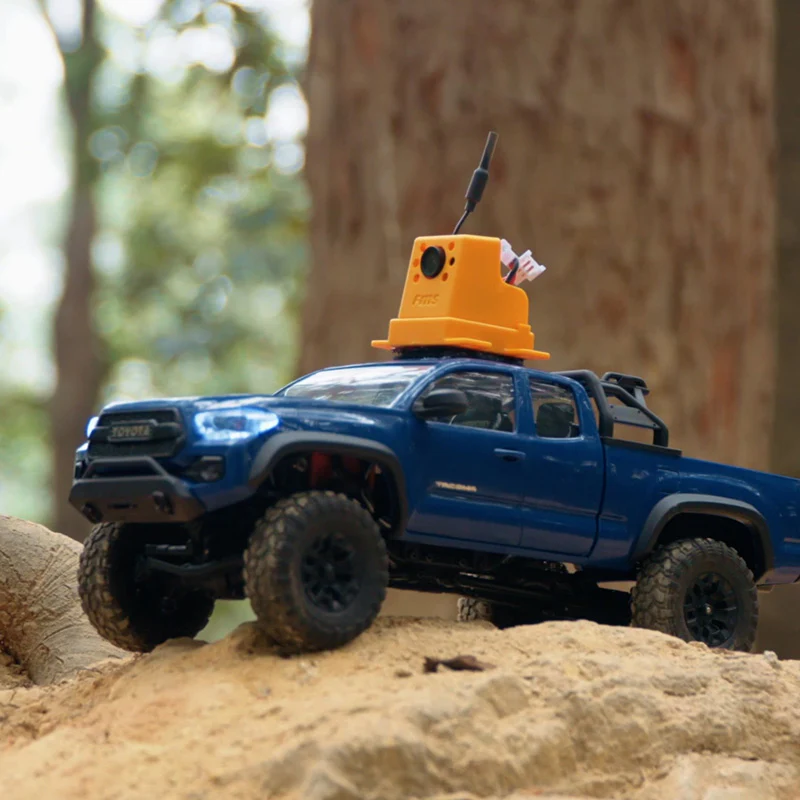

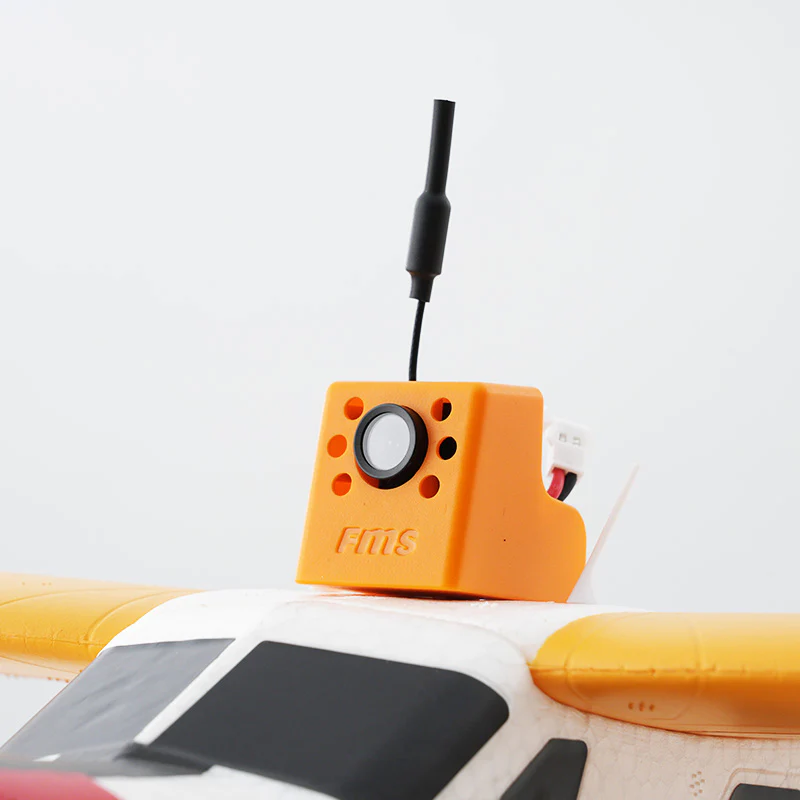

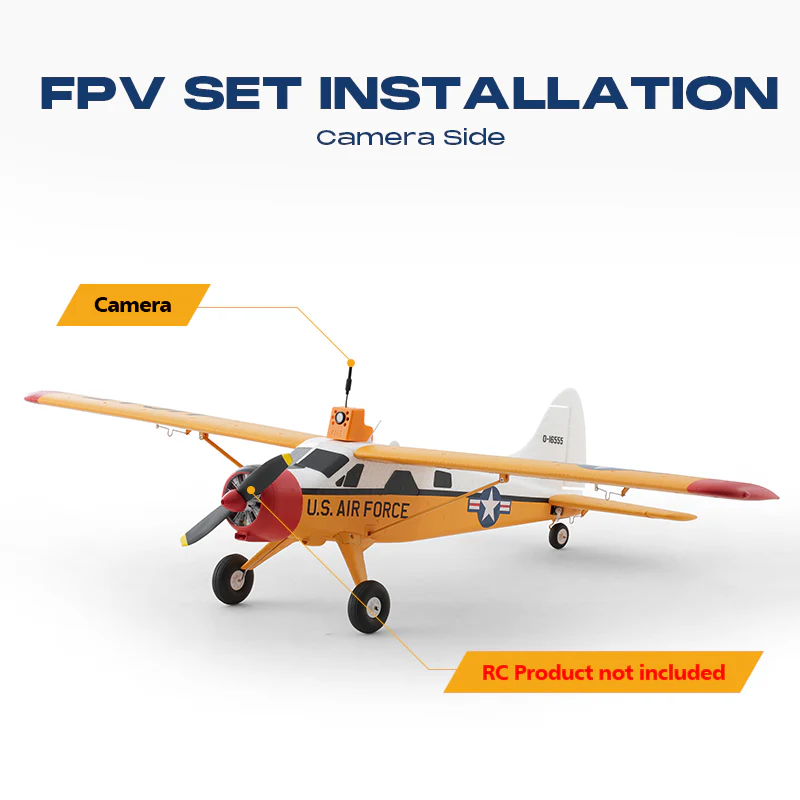

1. Securely mount the camera on your RC vehicle (drone/car/boat) using the included hook-and-loop straps or zip ties.
2. Install the antenna before powering on the monitor, then use the auto-scan function to find the frequency.
3. Begin your FPV adventure!

Q&A:

1. Why doesn??£¤t the image look as clear as I expected?
Analog video transmission has lower resolution compared to HD systems, resulting in less sharpness. However, it offers low latency, making it great for close-range FPV (within 100 meters).

2. Why is the screen flickering and showing static (snow)?
This could be due to environmental interference. Try moving the screen further away from Wi-Fi routers or the transmitter. You can also switch the video transmission band or channel to see if that helps (check the manual for how to change the channel).

3. Why does the image look so blurry?
The camera??£¤s focus might not be properly adjusted. Try rotating the lens clockwise or counterclockwise until the image comes into sharp focus.

4. What is the operating endurance of the monitor and camera?
When fully charged, the monitor lasts up to 3 hours, while the camera provides up to 20 minutes of use.

5. What??£¤s the signal range of the 5.8GHz Analog FPV System?
The effective range is up to 150 meters in open areas without interference.

FPV Monitor Specification:

Screen Size	4.3 inches
Resolution	480?¡§¡é272 pixels
Aspect Ratio	16:9
Brightness	500 cd/m2
Input Format	NTSC/PAL Auto-Switch
AV Interface	3.5mm analog video
Operating Voltage	5V DC
Charging Port	Micro-USB 5V/2A
Battery Capacity	3.7V 2500mAh Li-ion
Frequency Range	4990-5945 MHz
Channels	56 channels
Sensitivity	-90dBm
Antenna Connector	RP-SMA (inner pin)
Dimensions	123?¡§¡é85?¡§¡é26 mm
OSD Display	Signal strength/Battery/CH
Auto-Scan	One-button frequency search

Camera Specification:

Antenna Type	Copper tube
Working Current	220mA
Voltage Range	2.5-5.5V (5V typ.)
Dimensions	13.5?¡§¡é15.9?¡§¡é17.2mm
Weight	3.6g
RF Power	25mW
Channels	48CH
Camera	120?? FOV, 600TVL
Lens	f=1.4mm
Video Standard	PAL
